PATCHBOX 365 Cat.6a
PATCHBOX 365 Cat.6a
Accepted payment methods
Official Quote required before purchase? Click here
The use of a PATCHBOX can already pay off from one downtime onwards
Up to 50% more space
In comparison to conventional cabling up to 50% more rack space
Peace of mind, guaranteed for at least 5 years
Up to 8x faster
Maintenance, as well as installation is up to eight times faster
You are in good company!
You can swap cassettes within seconds.
Allows you to visually separate different applications from each other.
Tested to ISO/IEC 11801 Ea Class and ANSI/EIA/TIA-568 Cat 6A Channel standards.
Fiber Optic Cables
OS2 and OM4 made with Corning® fibers.
Power over Ethernet
Power your devices with PoE (STP: PoE / UTP: PoE++ Type 3).
3 different cable lengths
0.8m covers 8RU, 1.8m covers 30RU and 2.5m covers 46 RU.
Patented Pulley Mechanism
Stores the excess length of the patch cables in the cassette.
On the PATCHBOX Plus+ and 365 - also applies to the cables.
See how our cassettes work
The easily exchangeable PATCHBOX Cassettes contain our flat ethernet cables. They are tested to ISO/IEC 11801 Ea Class and ANSI/EIA/TIA-568 Cat 6A Channel standards, RoHS compliant and capable of PoE (STP: PoE / UTP: PoE++ Type 3). Our cables are available in multiple colours and variants: as shielded or unshielded Cat. 6a cables (STP/UTP) and also as optical fiber (OS2/OM4) – the only length adaptable fiber optic cables on the market.
Installed and ready to rock in a few minutes
Save money thanks to the PATCHBOX. The cable system retracts and stores unused cables safely and ensures they are ready when you need them. It also allows a higher density in your network rack than conventional methods. That equals more gear in the same space with more overview without the service of a cabling company.
Turn your Rack from a beast into a beauty
Keep your rack forever organized with our innovative cable management system. Simply retract unused cables or overlength back into the cassette to keep a better overview and simplify your network cabling. The Patchcatch, our 0RU cable manager alternative, helps you to manage your cables. Unlike conventional cable managers it does not waste a single rack unit, allowing you to use up to 50% more space in your rack.
Specifications & Information
Flat Cat.6a U/FTP, ISO/IEC 11801 Channel Class Ea, ANSI/EIA/TIA-568 Cat 6A Channel, 500MHz, AWG36, 100% stranded copper, PVC jacket, PoE (802.3af), RoHS compliant
Flat Cat.6a U/UTP, ISO/IEC 11801 Channel Class Ea, ANSI/EIA/TIA-568 Cat 6A Channel, 500MHz, AWG30, 100% stranded copper, PVC jacket, PoE++ (802.3bt, Type 3 (60 W)), RoHS compliant
RJ45 shielded plug, pins gold plated, snagless booted
0.8m covers 8RU
RAL9005 powder coated steel
Stainless steel, laser-welded
Operating Temperature Range
-20°C — 60°C
Ambient Humidity Non-Condensing
10% – 90%
760mm x 590mm x 50mm WxDxH
For Customers in Australia & New Zealand
STP patch cords are compliant with AS/CA S008:2010

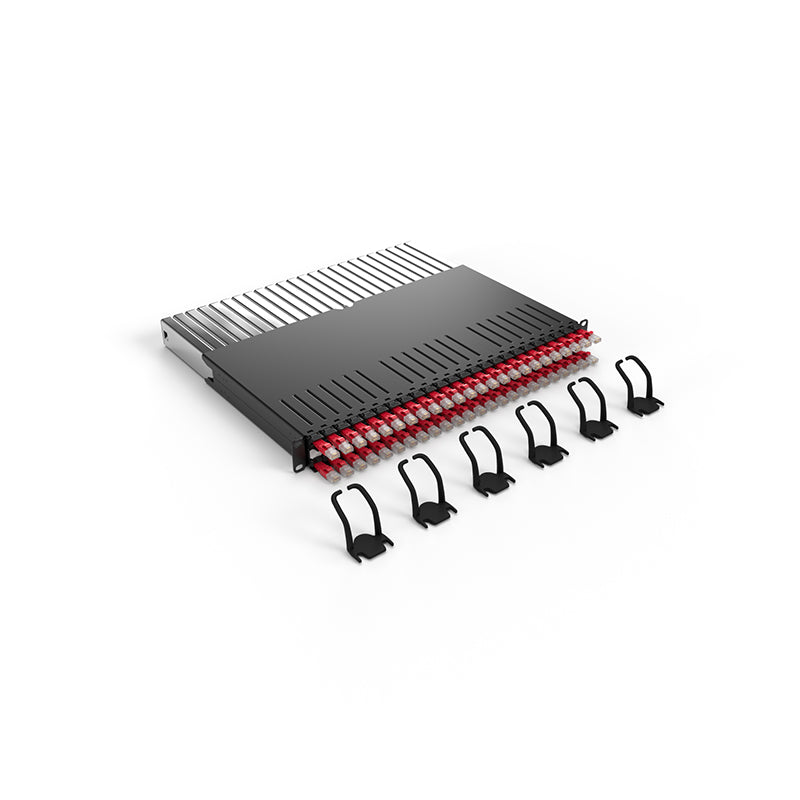

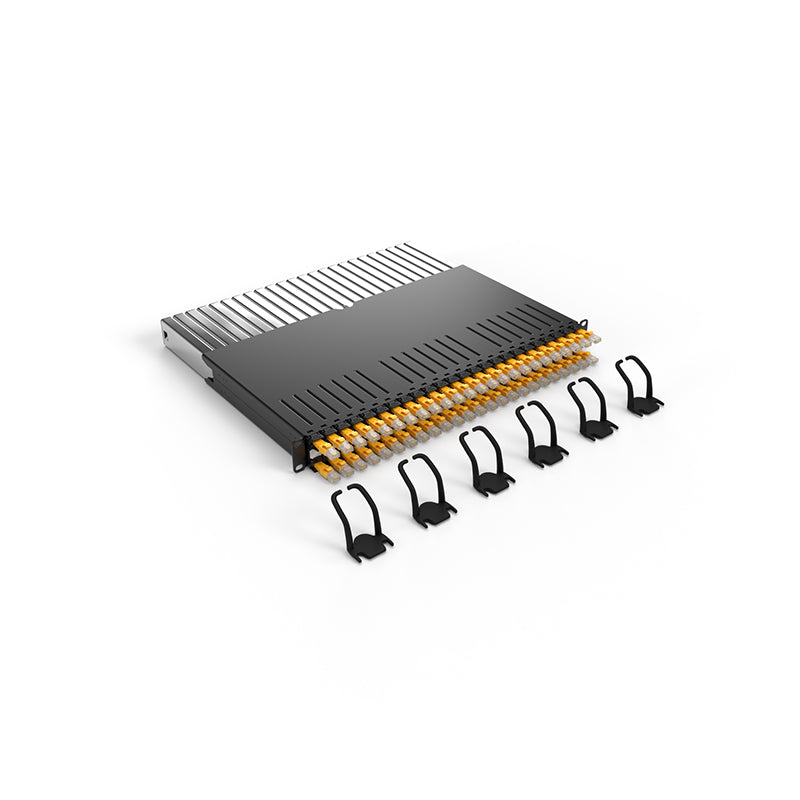

24 x PATCHBOX 365 STP / UTP Cassette with Cat.6a cable
1 x PATCHBOX 365 Frame
6 x Patchcatch
2 x DIN A5 tear-off ID Labels (96 Labels)
2 x /dev/mount
For the US: UPS via our partner Synergy Micro Solutions (find out more)
Carries for standard delivery: DB Schenker and Dachser.
Carriers for express delivery: DHL Express, UPS and FedEx.
The processing and delivery time depends on the shipping destination and the order volume. Find more information here.
