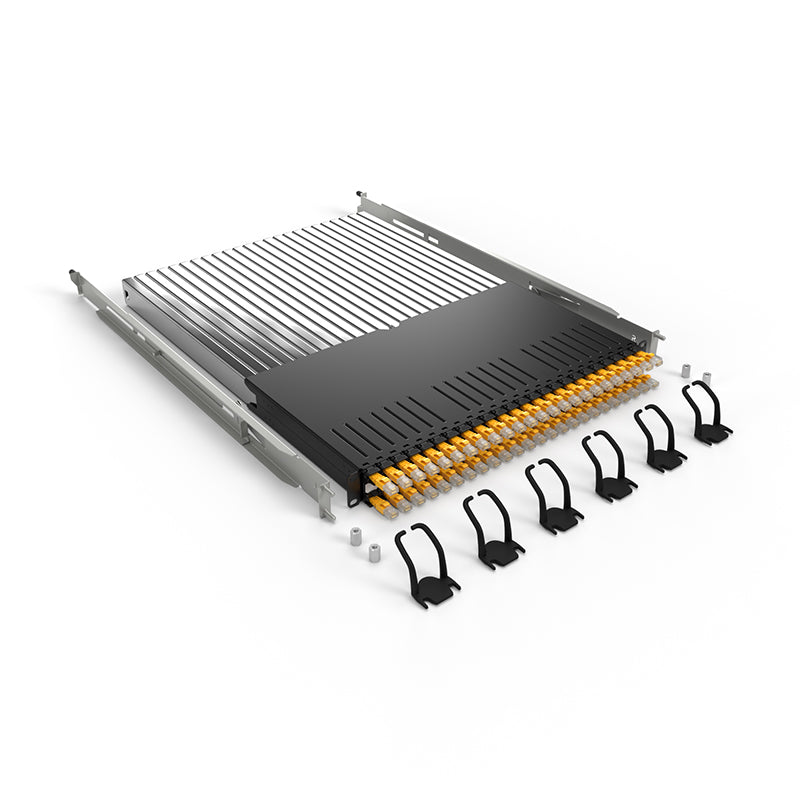

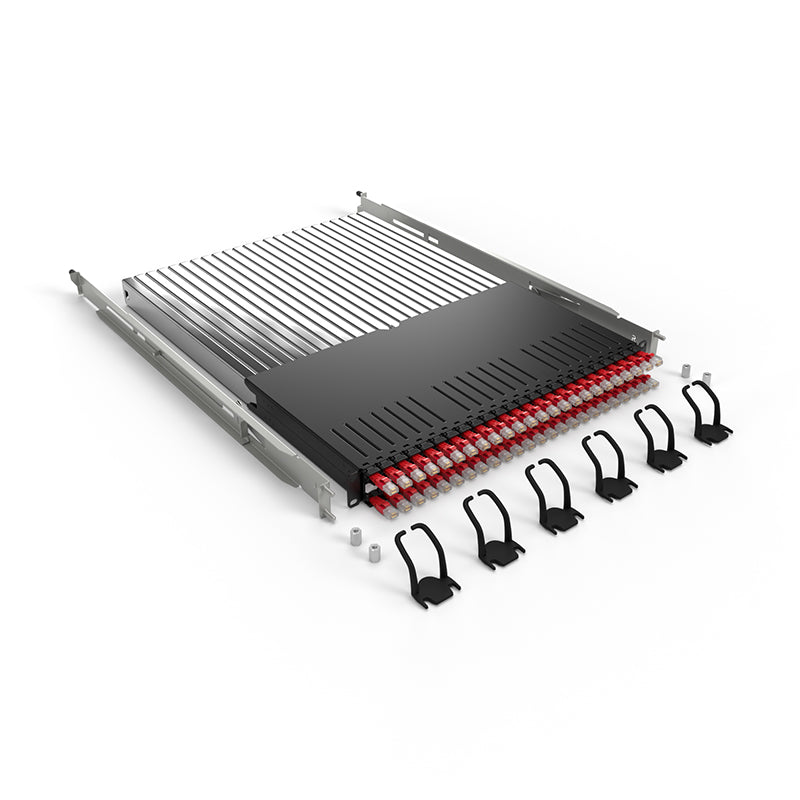

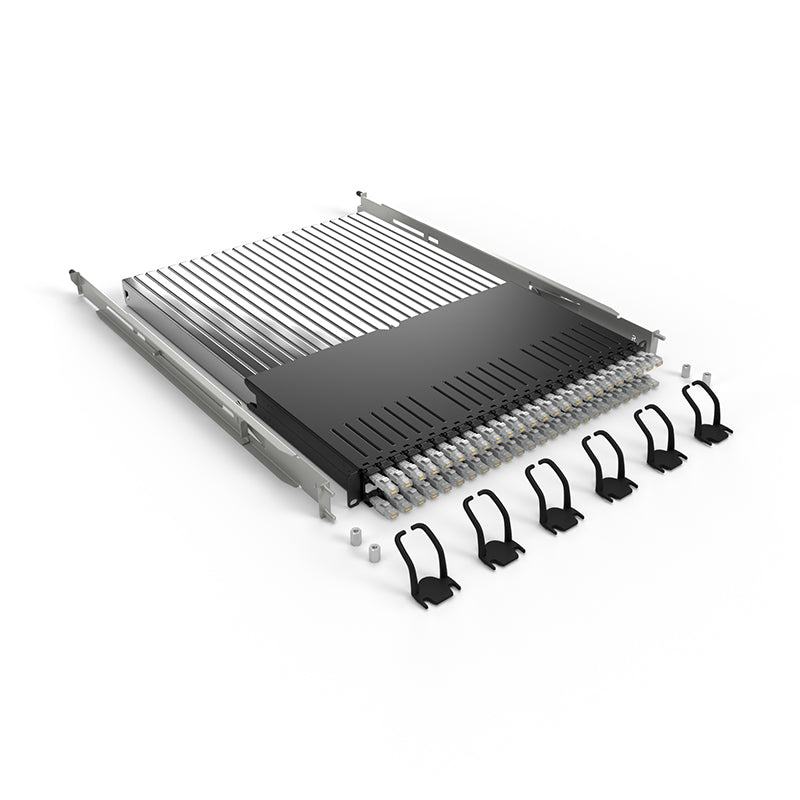

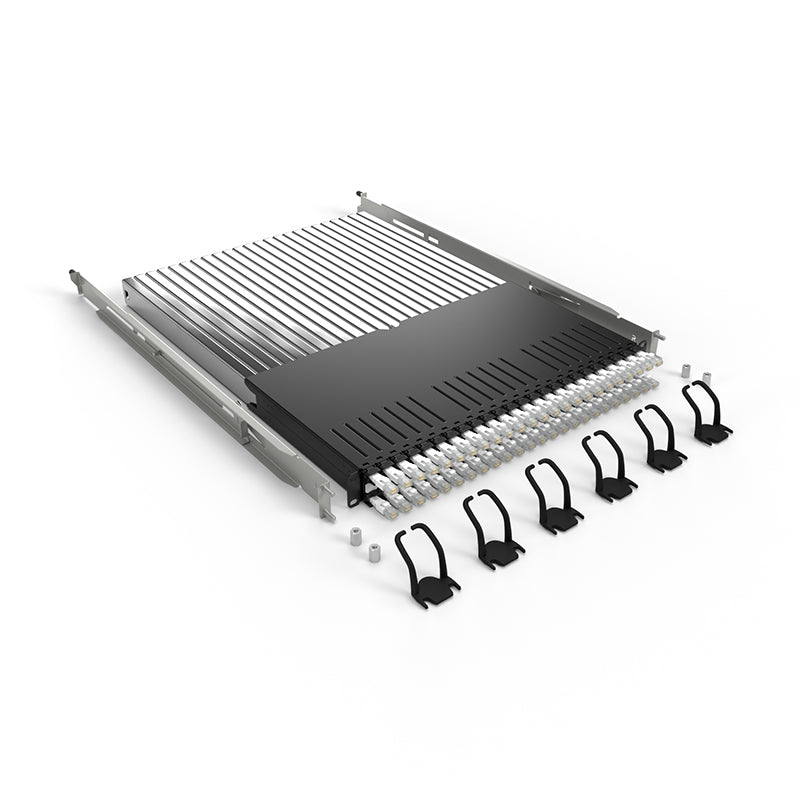

PATCHBOX Plus+ Cat.6a
PATCHBOX Plus+ Cat.6a
SKU:P60STPXC6AX24B
TAX excluded
Configuration
Accepted payment methods
Couldn't load pickup availability
Shorter Downtimes
The use of a PATCHBOX can already pay off from one downtime onwards
Up to 50% more space
In comparison to conventional cabling up to 50% more rack space
Better Airflow
Less cable overlength means fewer blockades for the airflow
Up to 8x faster
Maintenance, as well as installation is up to eight times faster
You are in good company!
Facts & Features
-
Modular System
You can swap cassettes within seconds.
-
Cable Colors
Allows you to visually separate different applications from each other.
-
Cat.6a Cables
Tested to ISO/IEC 11801 Ea Class and ANSI/EIA/TIA-568 Cat 6A Channel standards.
-
Fiber Optic Cables
OS2 and OM4 made with Corning® fibers.
-
Power over Ethernet
Power your devices with PoE (STP: PoE / UTP: PoE++ Type 3).
-
3 different cable lengths
0.8m covers 8RU, 1.8m covers 30RU and 2.5m covers 46 RU.
-
Patented Pulley Mechanism
Stores the excess length of the patch cables in the cassette.
-
5-Year Warranty
On the PATCHBOX Plus+ and 365 - also applies to the cables.
See how our cassettes work
The easily exchangeable PATCHBOX Cassettes contain our flat ethernet cables. They are tested to ISO/IEC 11801 Ea Class and ANSI/EIA/TIA-568 Cat 6A Channel standards, RoHS compliant and capable of PoE (STP: PoE / UTP: PoE++ Type 3). Our cables are available in multiple colours and variants: as shielded or unshielded Cat. 6a cables (STP/UTP) and also as optical fiber (OS2/OM4) – the only length adaptable fiber optic cables on the market.
Installed and ready to rock in a few minutes
Save money thanks to the PATCHBOX. The cable system retracts and stores unused cables safely and ensures they are ready when you need them. It also allows a higher density in your network rack than conventional methods. That equals more gear in the same space with more overview without the service of a cabling company.
Turn your Rack from a beast into a beauty
Keep your rack forever organized with our innovative cable management system. Simply retract unused cables or overlength back into the cassette to keep a better overview and simplify your network cabling. The Patchcatch, our 0RU cable manager alternative, helps you to manage your cables. Unlike conventional cable managers it does not waste a single rack unit, allowing you to use up to 50% more space in your rack.
Specifications & Information
Technical Specifications
STP Cable
Flat Cat.6a U/FTP, ISO/IEC 11801 Channel Class Ea, ANSI/EIA/TIA-568 Cat 6A Channel, 500MHz, AWG36, 100% stranded copper, PVC jacket, PoE (802.3af), RoHS compliant
UTP Cable
Flat Cat.6a U/UTP, ISO/IEC 11801 Channel Class Ea, ANSI/EIA/TIA-568 Cat 6A Channel, 500MHz, AWG30, 100% stranded copper, PVC jacket, PoE++ (802.3bt, Type 3 (60W)), RoHS compliant
Connector
RJ45 shielded plug, pins gold plated, snagless bootedCable length 1.8m covers 30RU
Frame
RAL9005 powder coated steel
Cassette Profiles
Stainless steel, laser-welded
Mounting Rails
Stainless steel, variable from 500mm to 850mm
Plastic Parts
Polyoxymethylene POM
Operating Temperature
Range-20°C - 60°C
Ambient Humidity
Non-Condensing10% - 90%
Gross Weight
11.86kg
Packaging Dimensions
760mm x 590mm x 50mm WxDxH
HS-Code
8544 4210
For Customers in Australia & New Zealand
STP patch cords are compliant with AS/CA SO08:2010 A1:2014
Items included
24 x PATCHBOX Plus+ Fiber OS2 / OM4 Cassette
with LC-LC / LC-SC connector
1 x PATCHBOX Plus+ Frame
6 x Patchcatch
2 x adjustable mounting rails incl. hex nuts
2 x DIN A5 tear-off ID Labels (96 Labels)
Shipping
For the US: UPS via our partner Synergy Micro Solutions (find out more)
Carries for standard delivery: DB Schenker and Dachser.
Carriers for express delivery: DHL Express, UPS and FedEx.
The processing and delivery time depends on the shipping destination and the order volume. Find more information here.
