PATCHBOX Plus+ Fiber Optic

PATCHBOX Plus+ Fiber Optic

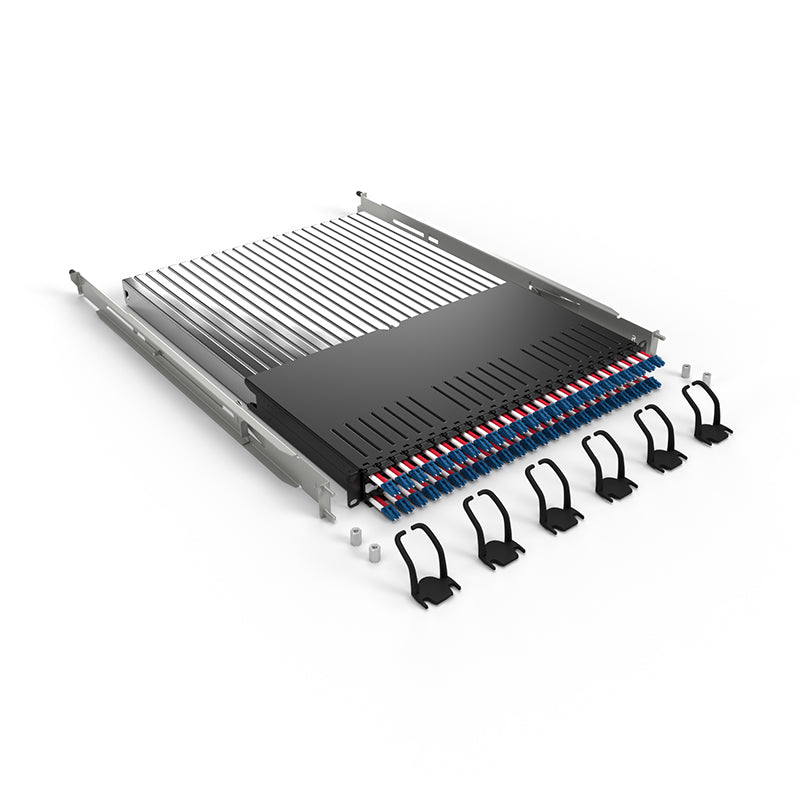

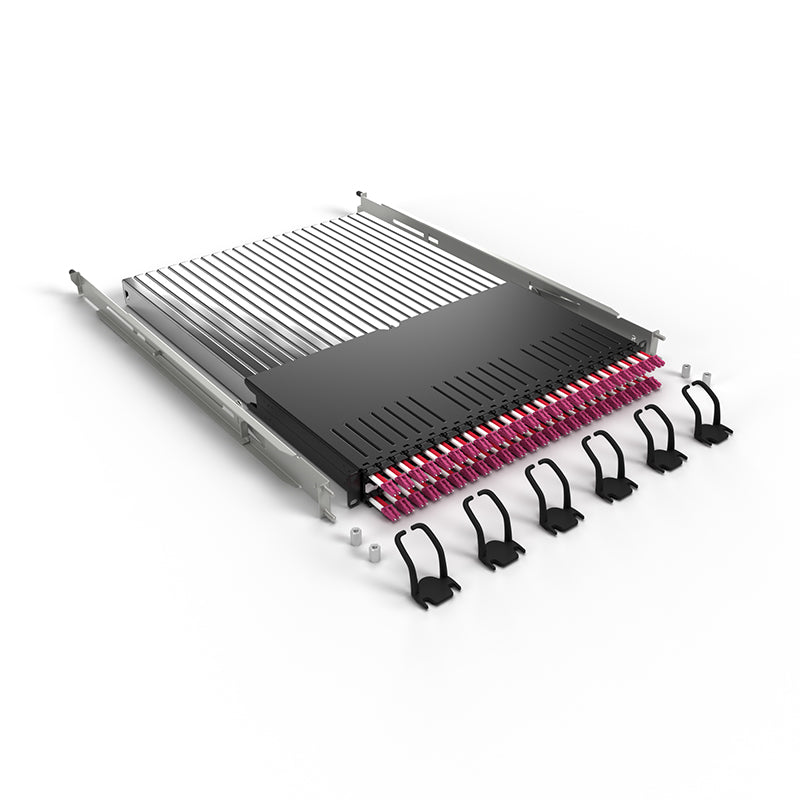

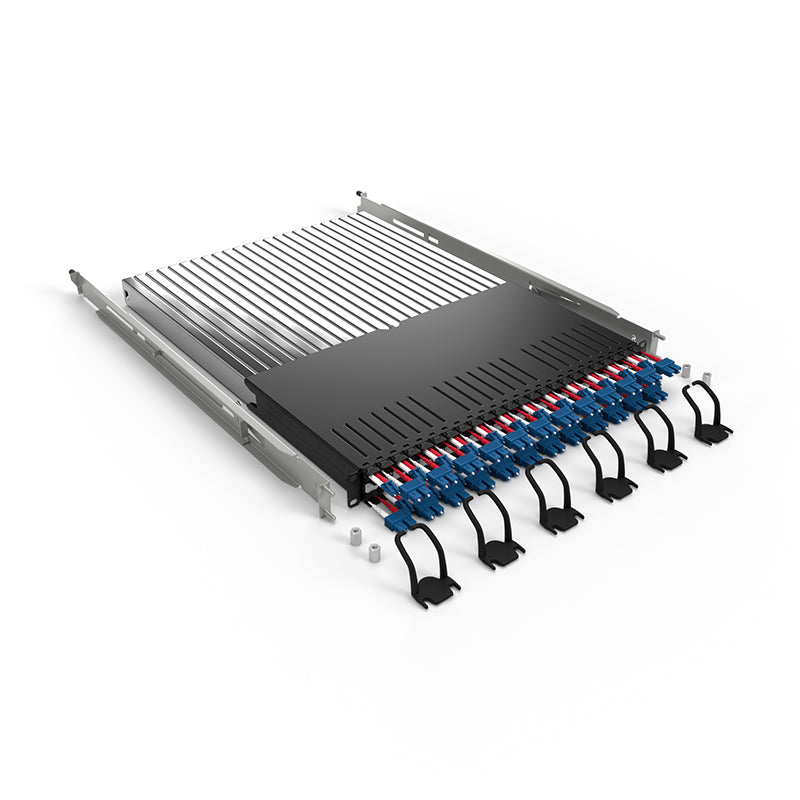

PATCHBOX is the most innovative cabling system for network racks ever. The PATCHBOX Plus+ with Fiber Optic cables consists of a Frame, Mounting Rails, the Patchcatch – our 0RU cable manager – and 24 Cable Cassettes with retractable cables inside. The cables are 1.8m long and cover up to 30RU. You can decide between OS2 and OM4 and LC-LC and LC-SC connectors.

SKU:P60SMAOS21124Y

Regular price $790.00
Regular price Sale price $790.00
Sale Sold out

TAX excluded

In stock

Configuration

Accepted payment methods

  • AMEX
  • Apple-Pay
  • Google-Play
  • Maestro
  • Mastercard
  • Visa
  • paypal
  • unionpay
  • eps

Official Quote required before purchase? Click here

View full details
Shorter Downtimes
Shorter Downtimes

The use of a PATCHBOX can already pay off from one downtime onwards

Up to 50% more space

In comparison to conventional cabling up to 50% more rack space

5-Year Warranty
5-Year Warranty

Peace of mind, guaranteed for at least 5 years

Up to 8x faster
Up to 8x faster

Maintenance, as well as installation is up to eight times faster

You are in good company!
  • Amazon
  • Bosch
  • Bundeskanzleramt
  • Decathlon
  • Epic-Games
  • Eppendorf
  • Hilton
  • Hitachi
  • Internet-Archive
  • McDonalds
  • Microsoft
  • Amazon
  • Bosch
  • Bundeskanzleramt
  • Decathlon
  • Epic-Games
  • Eppendorf
  • Hilton
  • Hitachi
  • Internet-Archive
  • McDonalds
  • Microsoft
  • Mitsubishi
  • Mondi
  • Quickline
  • Schiebel
  • Shopping-City-Sued
  • Siemens
  • Spar
  • Staatsoper-Hamburg
  • US-Air-Force
  • Walt-Disney
  • West-Ham-United
  • Mitsubishi
  • Mondi
  • Quickline
  • Schiebel
  • Shopping-City-Sued
  • Siemens
  • Spar
  • Staatsoper-Hamburg
  • US-Air-Force
  • Walt-Disney
  • West-Ham-United
  • Modular System

    You can swap cassettes within seconds.

  • Cable Colors

    Allows you to visually separate different applications from each other.

  • Cat.6a Cables

    Tested to ISO/IEC 11801 Ea Class and ANSI/EIA/TIA-568 Cat 6A Channel standards.

  • Fiber Optic Cables

    OS2 and OM4 made with Corning® fibers.

  • Power over Ethernet

    Power your devices with PoE (STP: PoE / UTP: PoE++ Type 3).

  • 3 different cable lengths

    0.8m covers 8RU, 1.8m covers 30RU and 2.5m covers 46 RU.

  • Patented Pulley Mechanism

    Stores the excess length of the patch cables in the cassette.

  • 5-Year Warranty

    On the PATCHBOX Plus+ and 365 - also applies to the cables.


See how our cassettes work

The easily exchangeable PATCHBOX Cassettes contain our flat ethernet cables. They are tested to ISO/IEC 11801 Ea Class and ANSI/EIA/TIA-568 Cat 6A Channel standards, RoHS compliant and capable of PoE (STP: PoE / UTP: PoE++ Type 3). Our cables are available in multiple colours and variants: as shielded or unshielded Cat. 6a cables (STP/UTP) and also as optical fiber (OS2/OM4) – the only length adaptable fiber optic cables on the market.

PATCHBOX Cassettes

Installed and ready to rock in a few minutes

Save money thanks to the PATCHBOX. The cable system retracts and stores unused cables safely and ensures they are ready when you need them. It also allows a higher density in your network rack than conventional methods. That equals more gear in the same space with more overview without the service of a cabling company.

PATCHBOX installed in minutes

Turn your Rack from a beast into a beauty

Keep your rack forever organized with our innovative cable management system. Simply retract unused cables or overlength back into the cassette to keep a better overview and simplify your network cabling. The Patchcatch, our 0RU cable manager alternative, helps you to manage your cables. Unlike conventional cable managers it does not waste a single rack unit, allowing you to use up to 50% more space in your rack.

Before
After

Specifications & Information

Technical Specifications

OS2 Cable
OS2 RBS 9μ/125μ, G.657.B3, LSZH, Yellow, Single-Mode,
RoHS compliant

OM4 Cable
OM4 RBS 50μ/125μ, LSZH, Erika Violet, Multi-Mode,
RoHS compliant

Connector

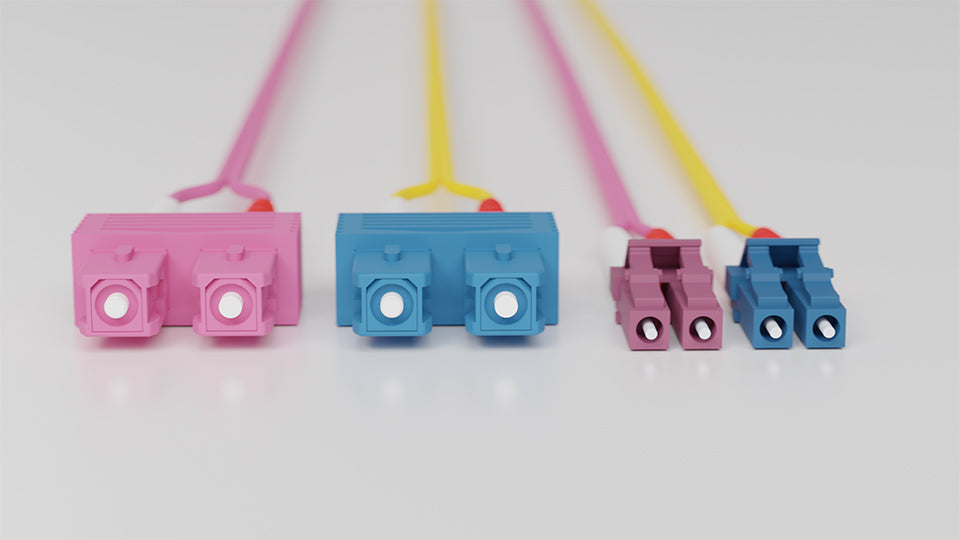

LC Duplex - LC Duplex / LC Duplex - SC Duplex

Cable length
1.8m covers 30RU

Frame
RAL9005 powder coated steel

Cassette Profiles
Stainless steel, laser-welded

Mounting Rails
Stainless steel, variable from 500mm to 850mm

Plastic Parts
Polyoxymethylene POM

Operating Temperature Range
-20°C - 60°C

Ambient Humidity Non-Condensing
10% - 90%

Gross Weight
11.86kg

Packaging Dimensions
760mm x 590mm x 50mm WxDxH

HS-Code
8544 7000

Items included

24 x PATCHBOX Plus+ Fiber OS2 / OM4 Cassette

with LC-LC / LC-SC connector

1 x PATCHBOX Plus+ Frame

6 x Patchcatch

2 x adjustable mounting rails incl. hex nuts

2 x DIN A5 tear-off ID Labels (96 Labels)

Shipping

For the US: UPS via our partner Synergy Micro Solutions (find out more)

Carries for standard delivery: DB Schenker and Dachser.

Carriers for express delivery: DHL Express, UPS and FedEx.

The processing and delivery time depends on the shipping destination and the order volume. Find more information here.
